Careful use of a stereo delay effect is an invaluable tool for thickening up sounds and adding width to a mix. In the video above and the step-by-step below we use a mono piano line to demonstrate how to create stereo width using the ping pong delay in Cubase.

Stereo Width - Create Stereo Width Using Ping Pong Delay In Cubase

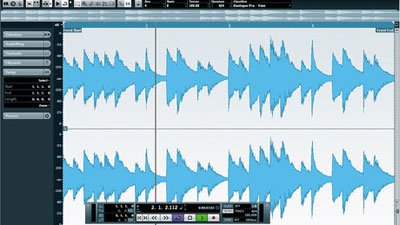

Step 1: We’ve chosen a piano to demonstrate this technique as it spans a relatively broad frequency range, has a reasonably audible sustain and features very defined attack transients. Load Piano100.wav (right click and Save As) into your DAW and have a listen. This is a stereo file with mono information in it (ie, both channels are identical).

Stereo Width - Create Stereo Width Using Ping Pong Delay In Cubase

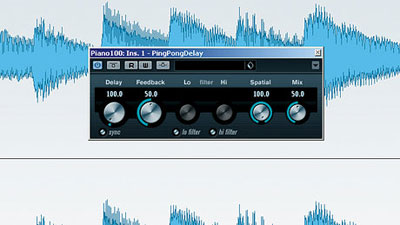

Step 2: We’re running at 100bpm. Insert a basic stereo delay effect, make sure the panning/spread is set to max and deactivate any filtering. Using Cubase’s Delay, we’ve left the Feedback and Mix knobs at their default middle positions. A Delay of 100ms improves the stereo width, but it sounds messy.

Stereo Width - Create Stereo Width Using Ping Pong Delay In Cubase

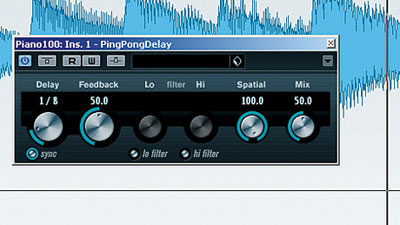

Step 3: Tempo-synced delay would seem the obvious choice, as it’ll ensure rhythmic, musical repeats. But what delay interval we go for? Our goal is to enhance the piano part’s perceived width – an 1/8 Delay setting sounds clashy, with some of the original notes being masked by previous notes…

Stereo Width - Create Stereo Width Using Ping Pong Delay In Cubase

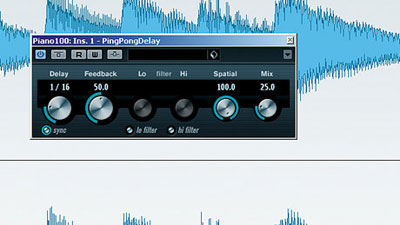

Step 4: …but 1/16 Delay sounds much better, as it leaves space for the original mono signal to breathe (the delay settings you use will vary depending on the source signal). As well as giving the impression of the piano taking up more of the stereo field, the delay adds front-to-back depth. Finally, we set the Mix knob to 25 to put the focus back on the dry signal.
